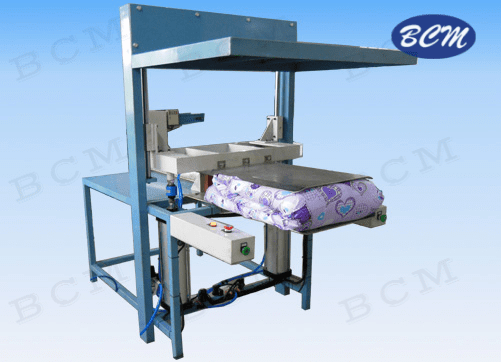

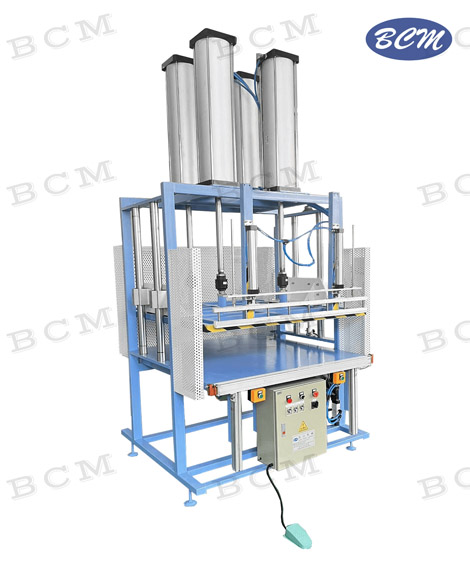

Strong pressing machine BC801-4 (φ200*800)


Model

BC801-4 (φ200*800)

Dimensions(L*W*H)

1470mm*1430mm*2900mm

Power

1.2kw

Air pressure

<0.8MPa

Net weight

600kg

Working table size(L*W)

1200mm*1300mm

Sealing length

1100mm

Sealing width

3mm

Pressure

7.0tons

Capacity

1-5pcs/min

Quan & Diameter

4*φ200*800

Working height

770mm

Video

https://youtu.be/_MovKv-CJxY

https://youtu.be/O5EeG8EUsdU

https://youtu.be/AEsEcWnqW5c

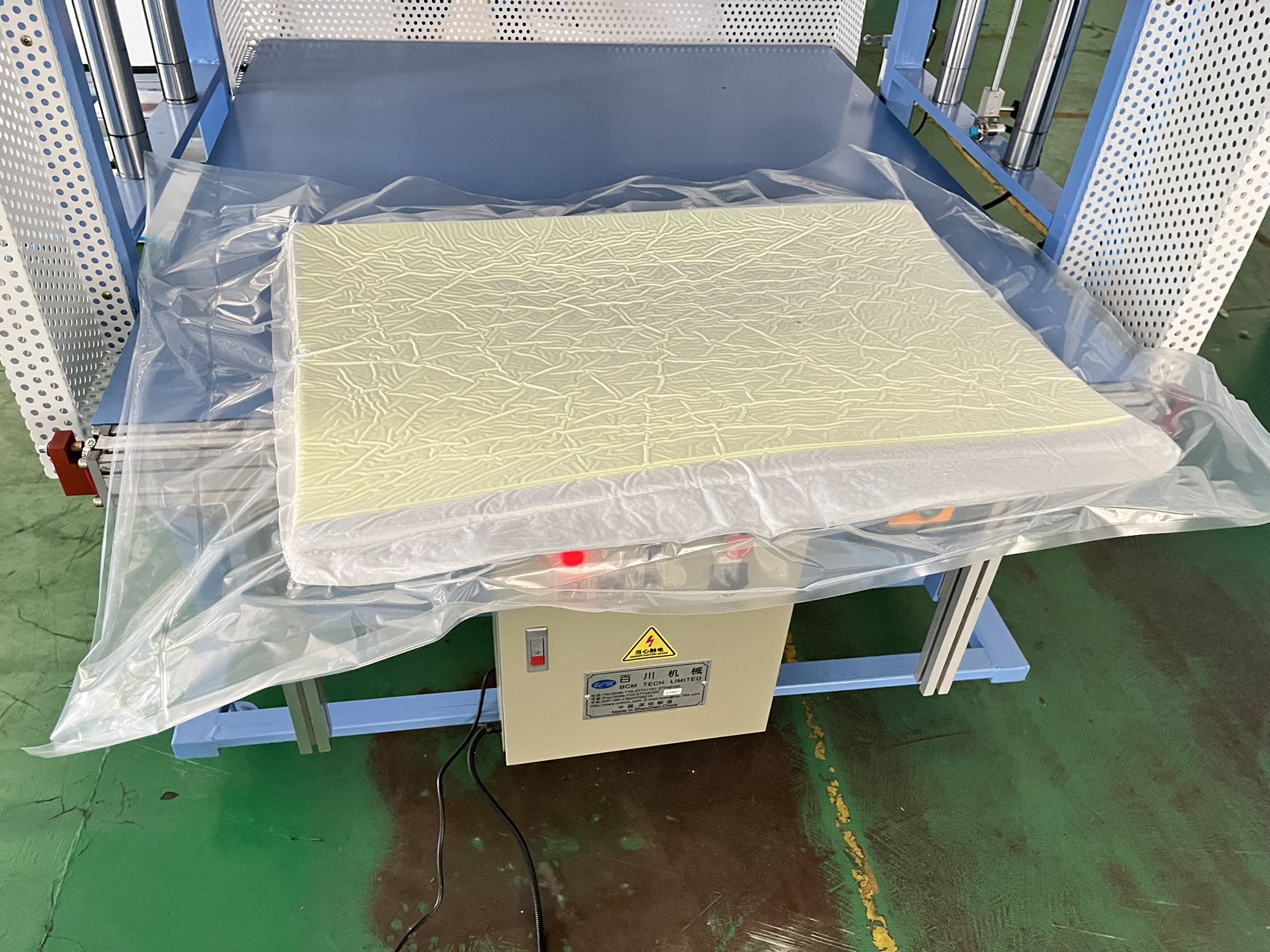

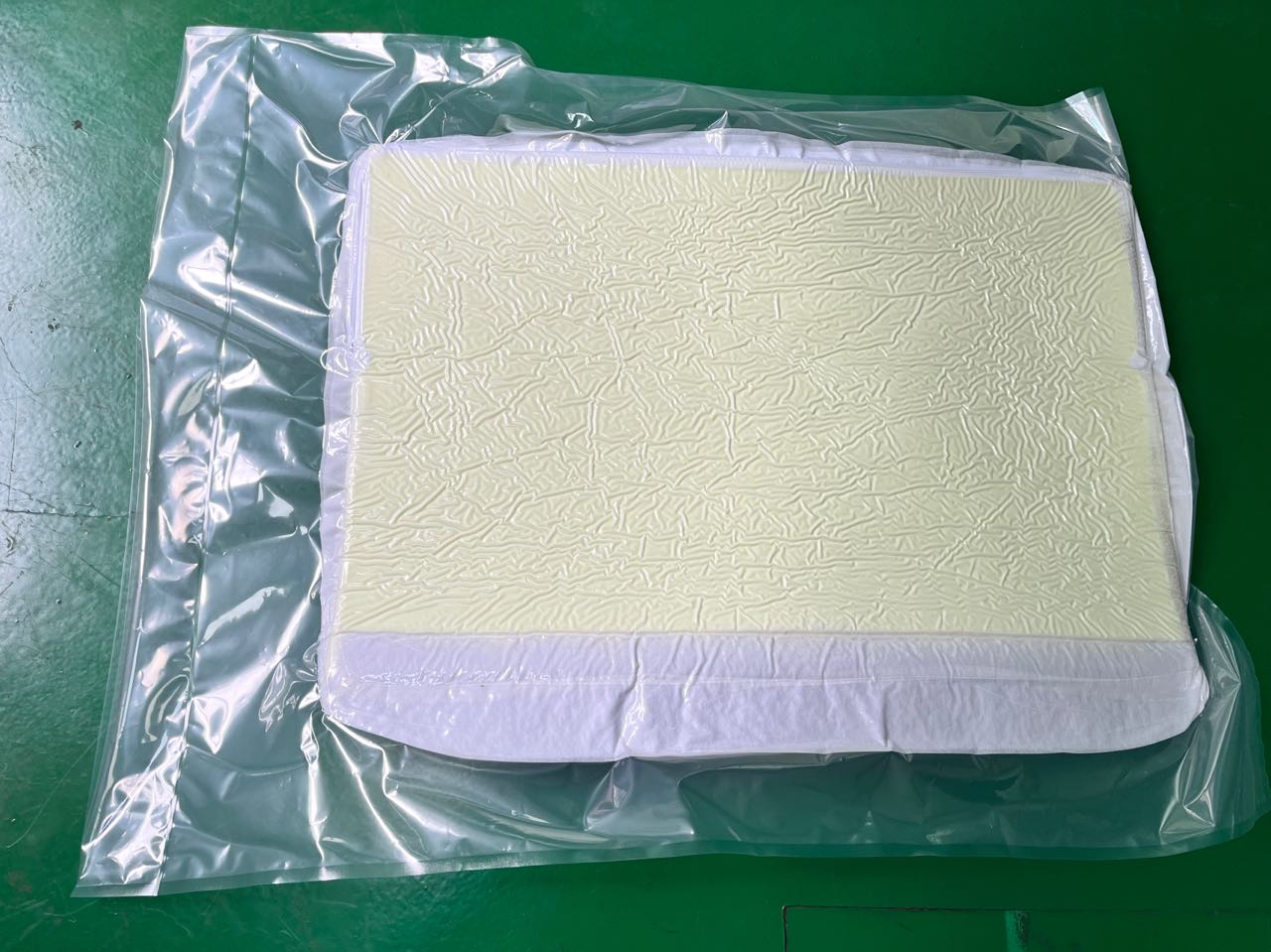

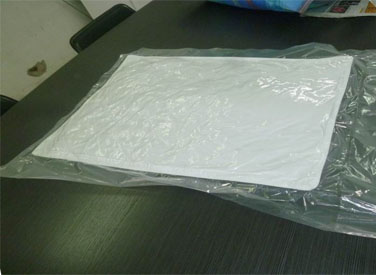

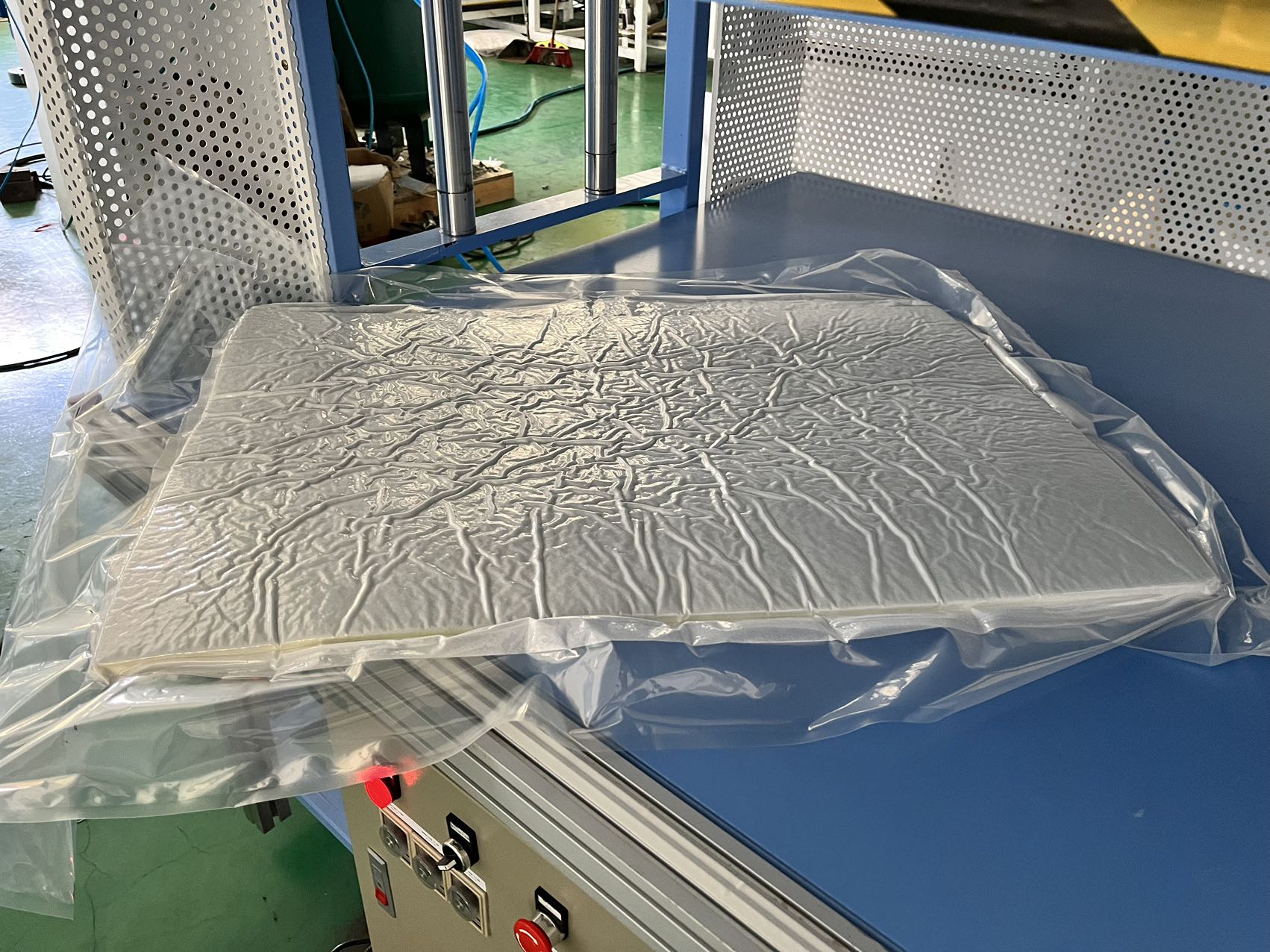

1)Equipped with thermo-sealing device, to ensure the perfect packing.

To reduce the storage and transportation cost.

2)According to the plastic packing bag’s thickness and quality, the machine can adjust the sealing time. The after-sealing-thickness is also adjustable.

3)Operated by pneumatic and electrical device, safe to use.

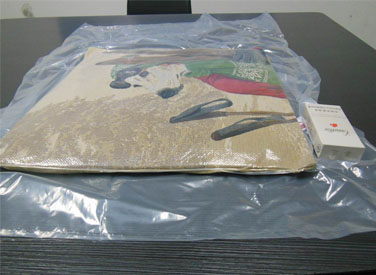

4)Equipped with 4pcs pressing cylinders, stronger pressure, can handle high density foam, heavy weight or several pillows, quilts etc.
